PartsXpress is the exclusive build center and master distributor for Sterling Electric, Inc.

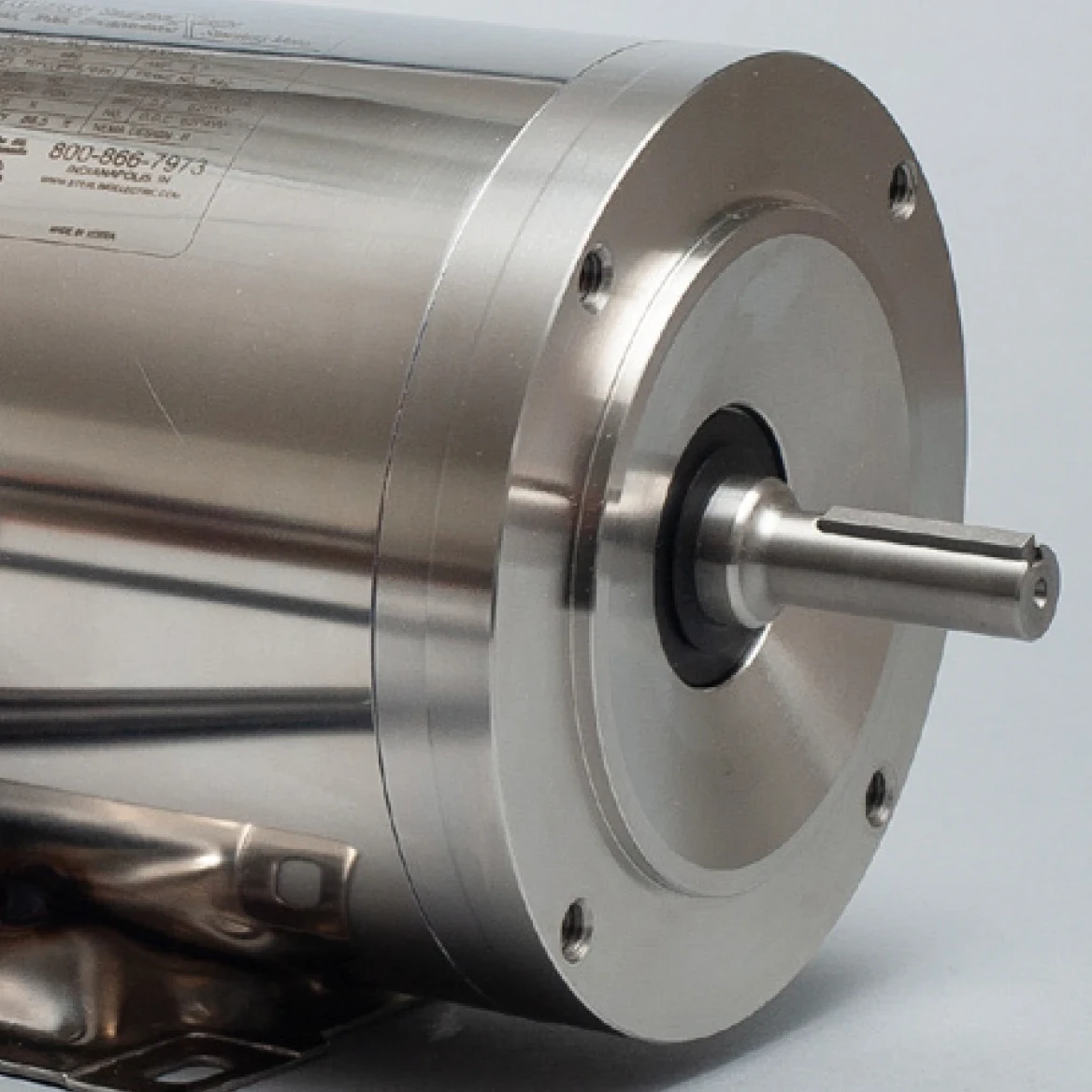

Our unsurpassed quality of stainless steel, encapsulated motors has been improved with our new Xtreme series product, by providing maintenance free operation, when purchased with a 10 Foot, 4 wire, pigtail cord.

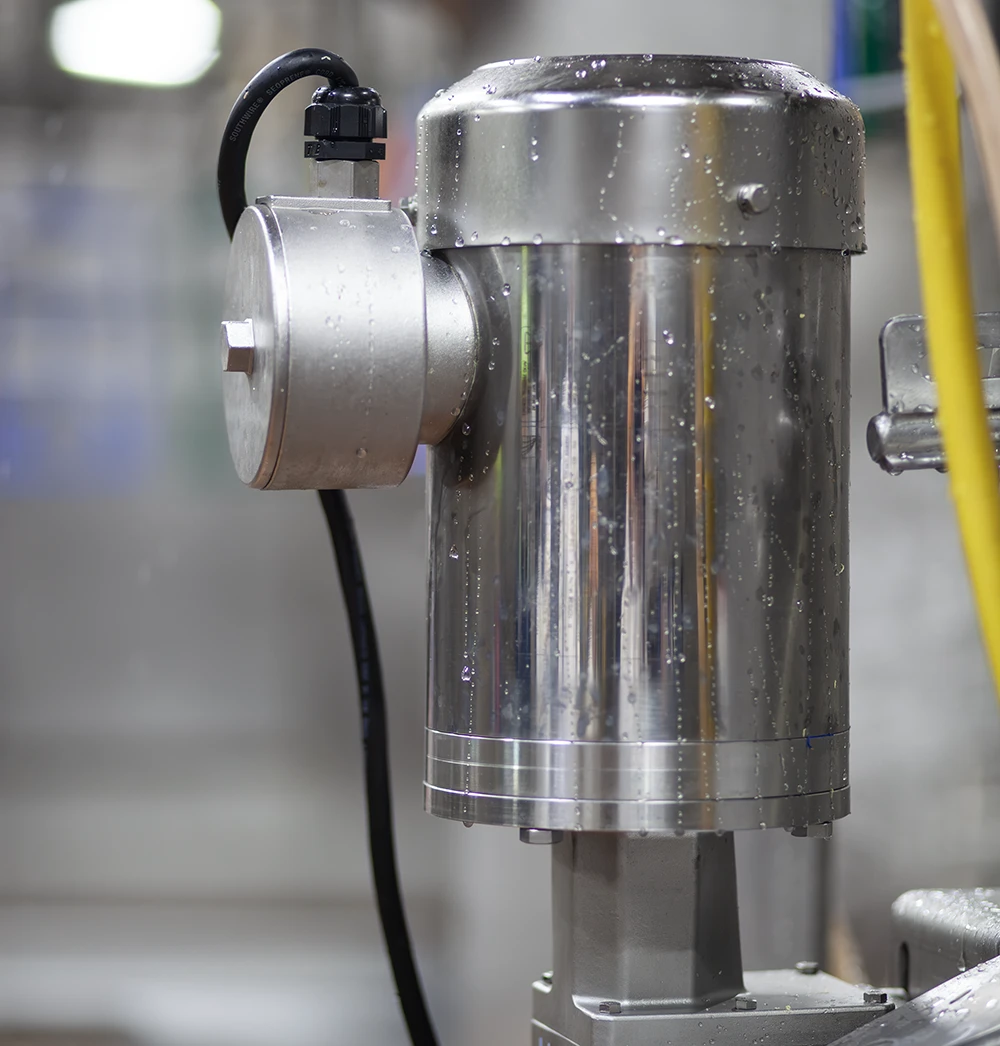

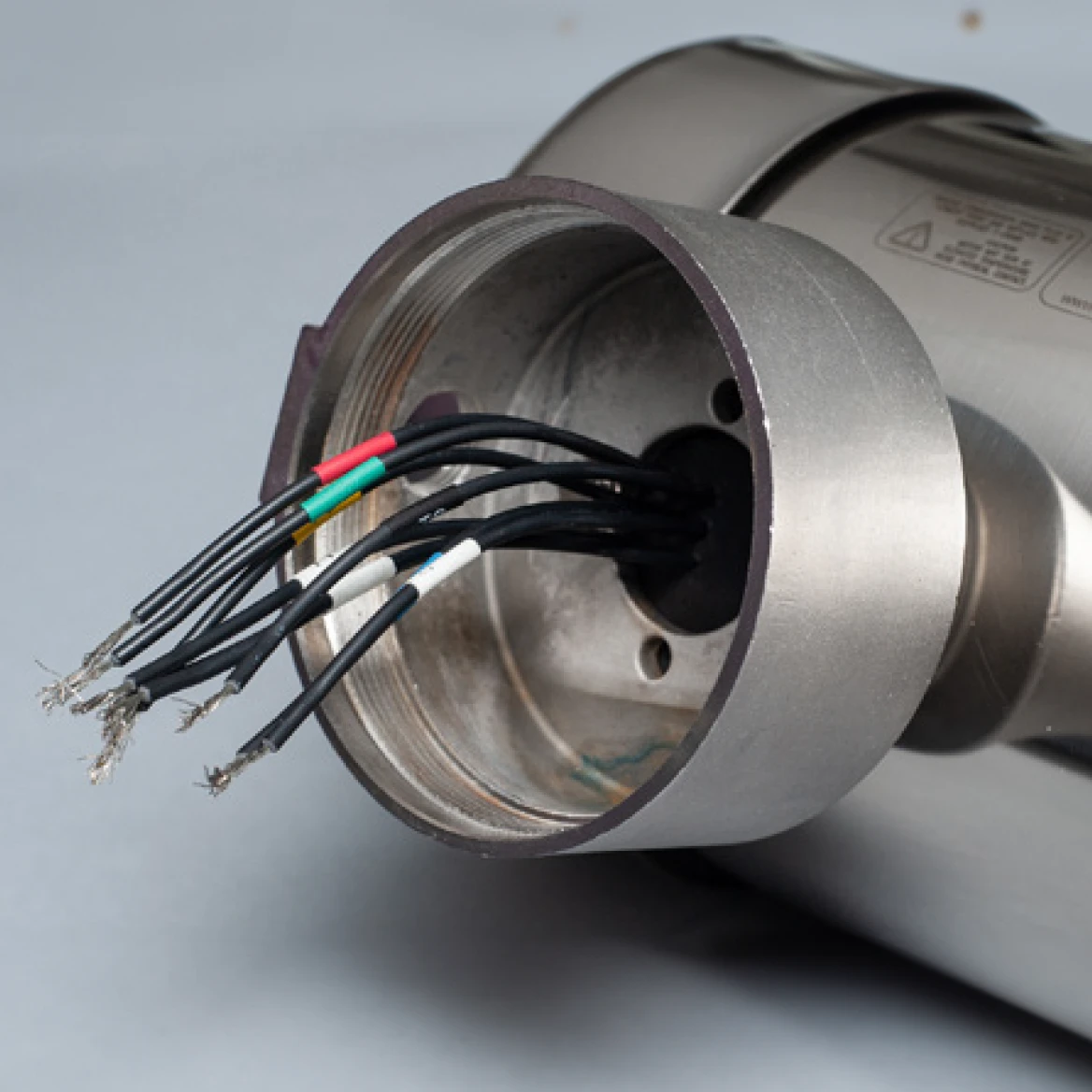

Sterling Electric Xtreme Corded Encapsulated Motors reduce downtime and provide the easiest installation of motors in the industry. Our corded motors allow direct wiring to the motor control, a quick disconnect plug or the ability to have a conduit connector mounted with the removal of our standard cable gland.
All encapsulated corded motors provide a 3 YEAR WARRANTY against defects in material or workmanship. Non-corded motors require the use of supplied silicone filled wire nuts to maintain 3 year warranty.
Sterling Electric’s Encapsulated Corded Motors are designed and tested to meet the harshest applications found in the food, beverage and pharmaceutical industries by carrying an IP66/69K ingress rating to withstand high pressure/temperature water washdowns.

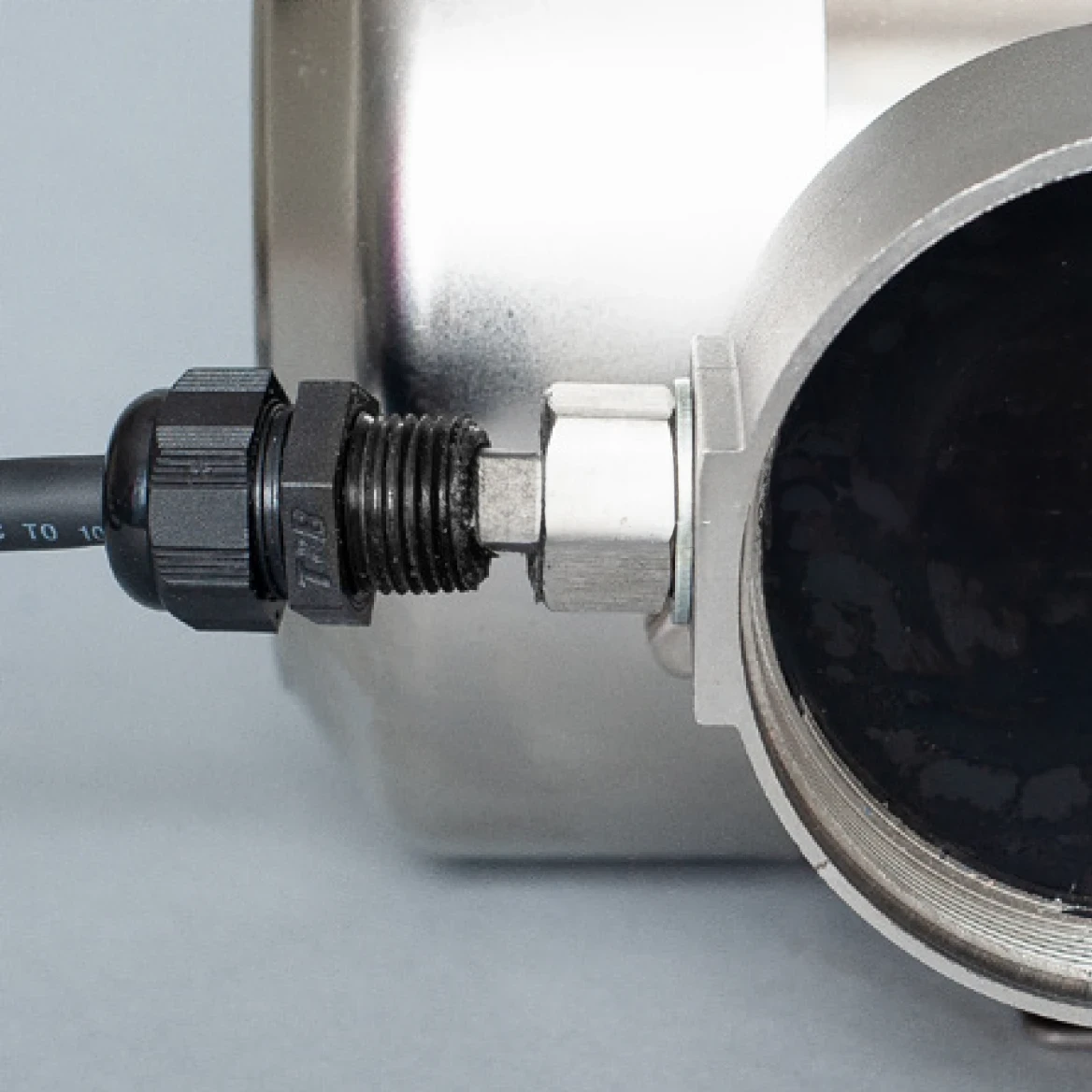

All corded motors are provided with a stainless steel 1/2” NPT adapter that allows removal of the standard supplied cable gland and gives the ability to mount conduit in it’s place.
Fully-encapsulated motor provides the elimination of T-Drains, allowing installation in any mounting position and maintenance free operation.
Non-corded version supplied with investment cast stainless steel conduit box capable of being rotated in 90º increments (applies to non-corded version only).

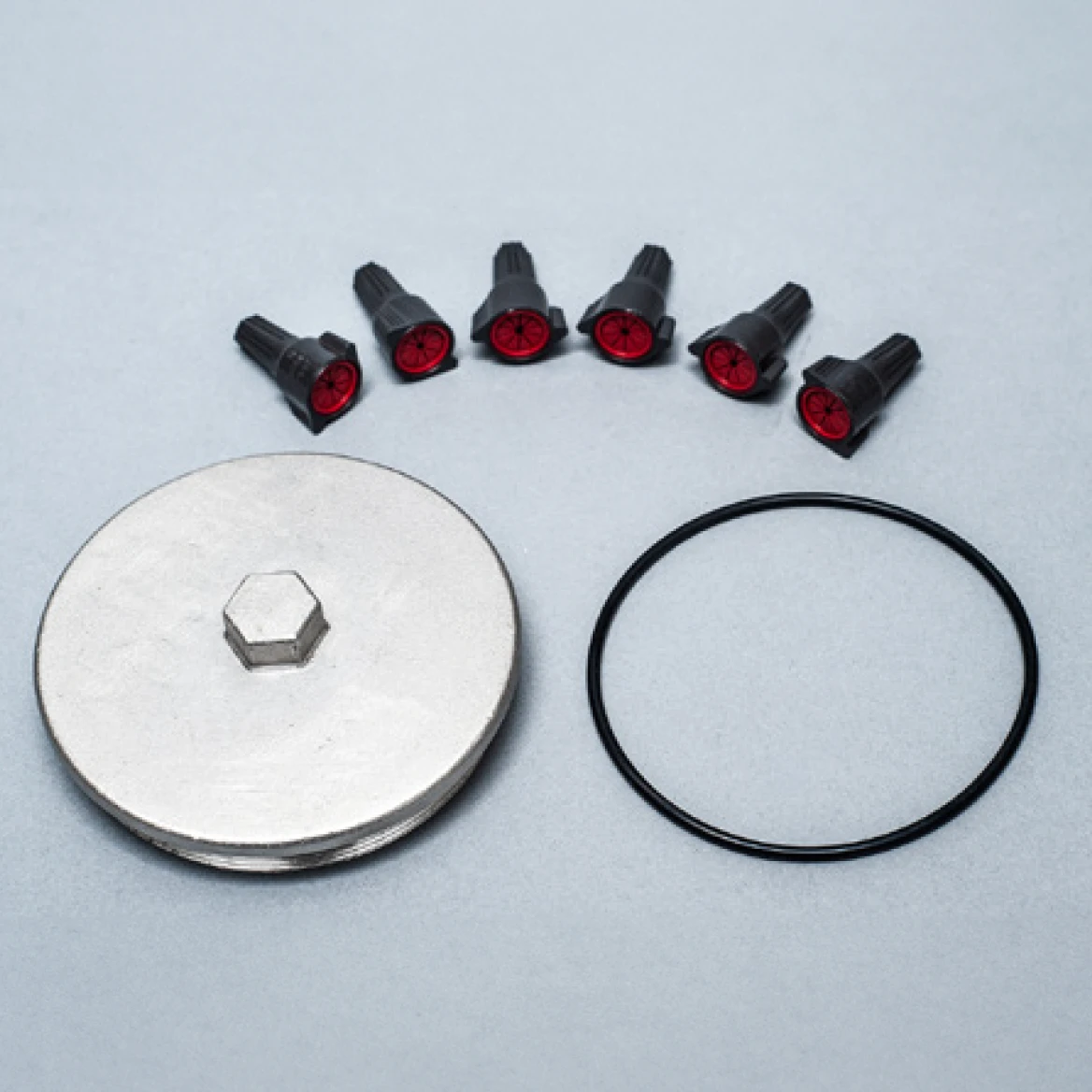

Conduit box is supplied with (6) silicone filled wire nuts, investment cast screw-off cover with O-ring to provide a waterproof connection.
Sanitary Worm Gear Reducer
Sterli-Seal®

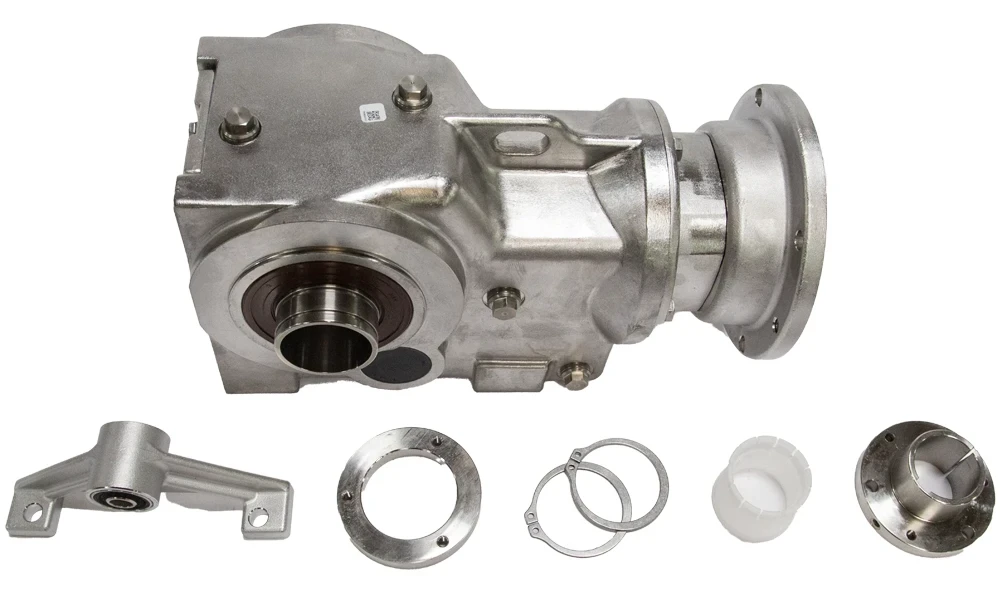

Sterling Electric is excited to announce the arrival of our symmetrical tapered bushing smooth body helical bevel and smooth body worm gear reducers. This new addition provides ease of installation and reduces the problem of fret corrosion on the mounted equipment shaft when removal is required.
Our symmetrical design allows the taper bushing to be mounted on either the right or left hand side of the reducer. In addition the taper bushings are common to both the worm gear reducer or helical bevel products to reduce inventory and provide greater flexibility to original equipment manufacturers and end users.
SYMMETRICAL TAPERED BUSHING SMOOTH BODY HELICAL BEVEL AND SMOOTH BODY WORM GEAR REDUCERS
Our unique design is provided, as standard, with dual output VitonTM seals. The output shaft is manufactured to accommodate the taper bushing pull up ring on either side of the reducer. This eliminates specification of a right/left hand assembly when ordering.
Symmetrical design shaft cover and bushing kits are sold separately. Refer to our 2000RA and helical gear products catalogs for selections by input horsepower and available ratios.
Dual Double Lip Output Seal/Input Seal

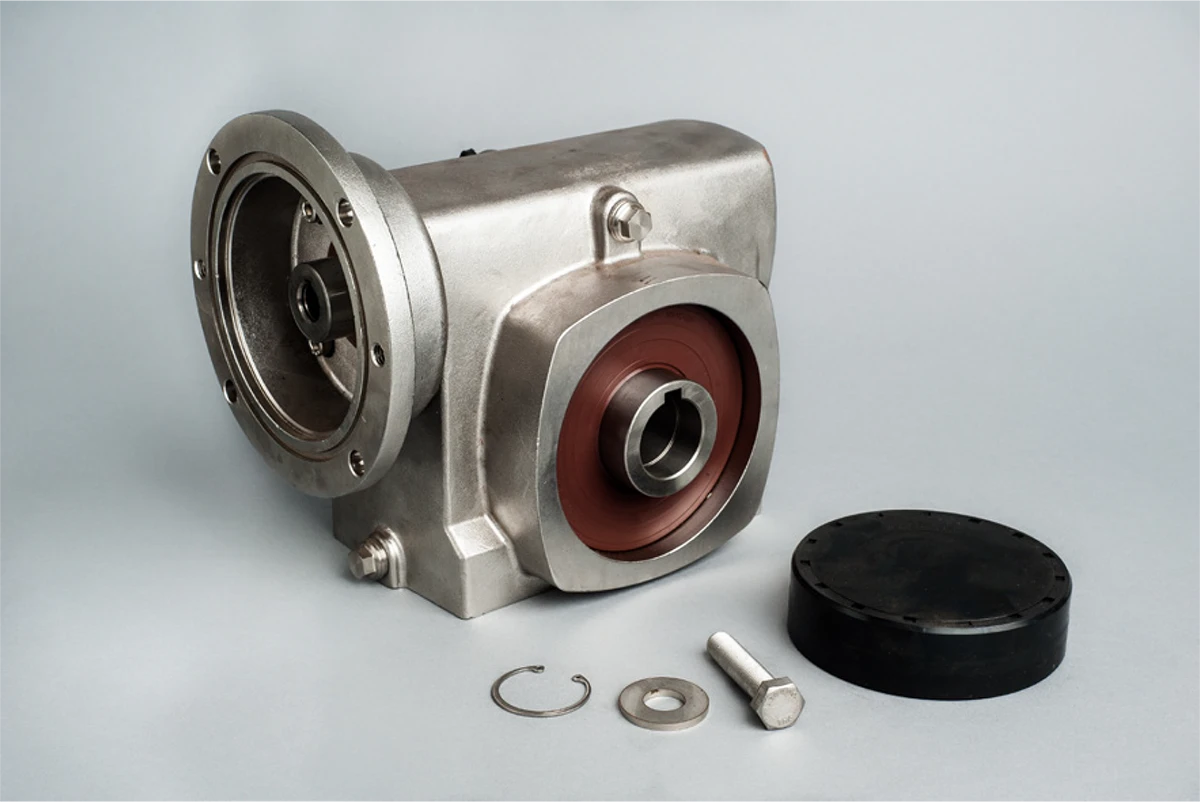

Ring, bolt and washer supplied for mounting to customer shaft. Seal plug for protection of rotating output shaft.

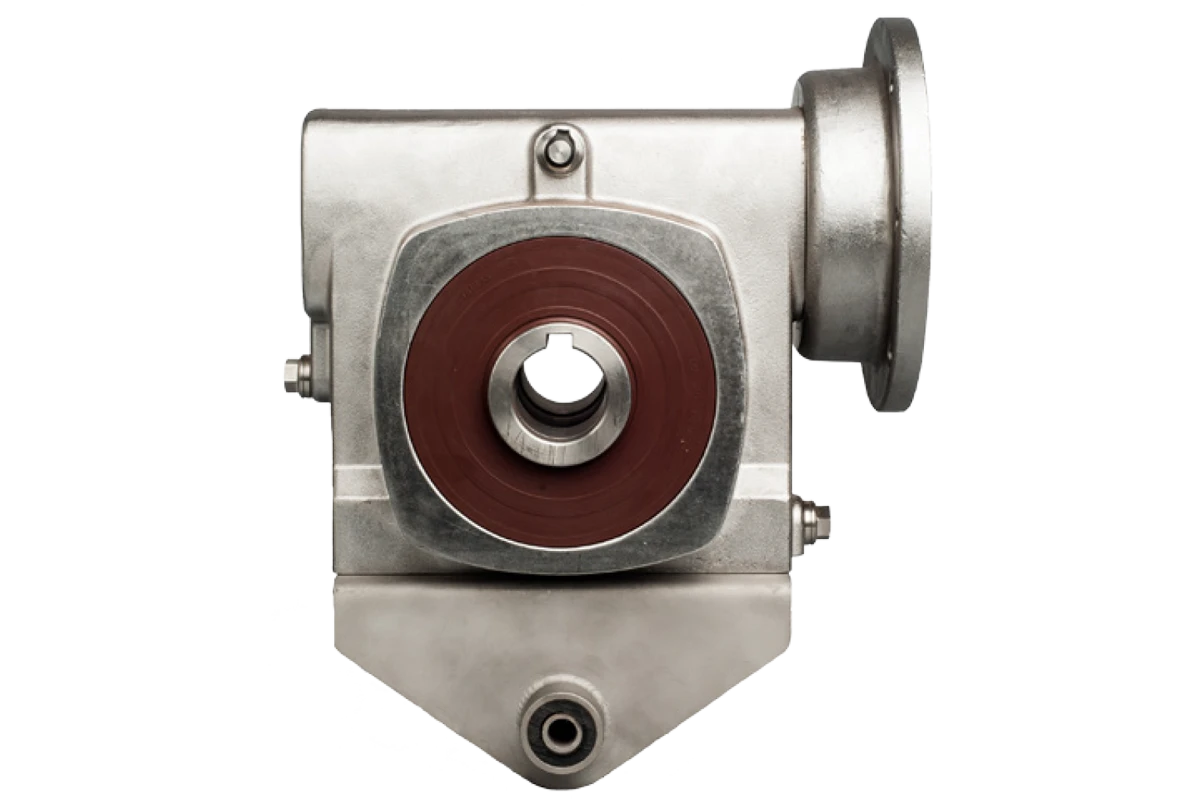

Recommended Torque Arm Mounting (shown). Additional Charge Applies
OUR OUTSTANDING FEATURES INCLUDE
- IP69K Ingress rated
- One piece 300 series stainless steel investment cast housing
- Electropolished exterior finish
- Rounded edges prevent pooling or puddling of liquids after sanitation
- No exposed mounting hardware to allow accumulation of materials
- No exposed threads on oil level plugs
Flush mounted to reduce case housing - Double input Viton® Oil Seals with O-Ring C-Face Bracket
- Output designed to accommodate double output seals, as standard
- Factory filled with Mobil Cibus 460 – H1 food grade oil
- Etched nameplate, as standard
Universal Picker Motor
Power Transmissions
For 90 Years Sterling Electric has provided SOLUTIONS to critical customer applications with superior products. We are the “go-to company” for products used in sanitary applications where other manufacturer’s products cannot survive.
Keeping our SOLUTIONS philosphy in mind, we have developed our Universal Picker Motor to provide features that cannot be found with
competing brand products. In addition, our product provides one base model that allows for NEMA or metric mounting configurations reducing maintenance inventory requirements.

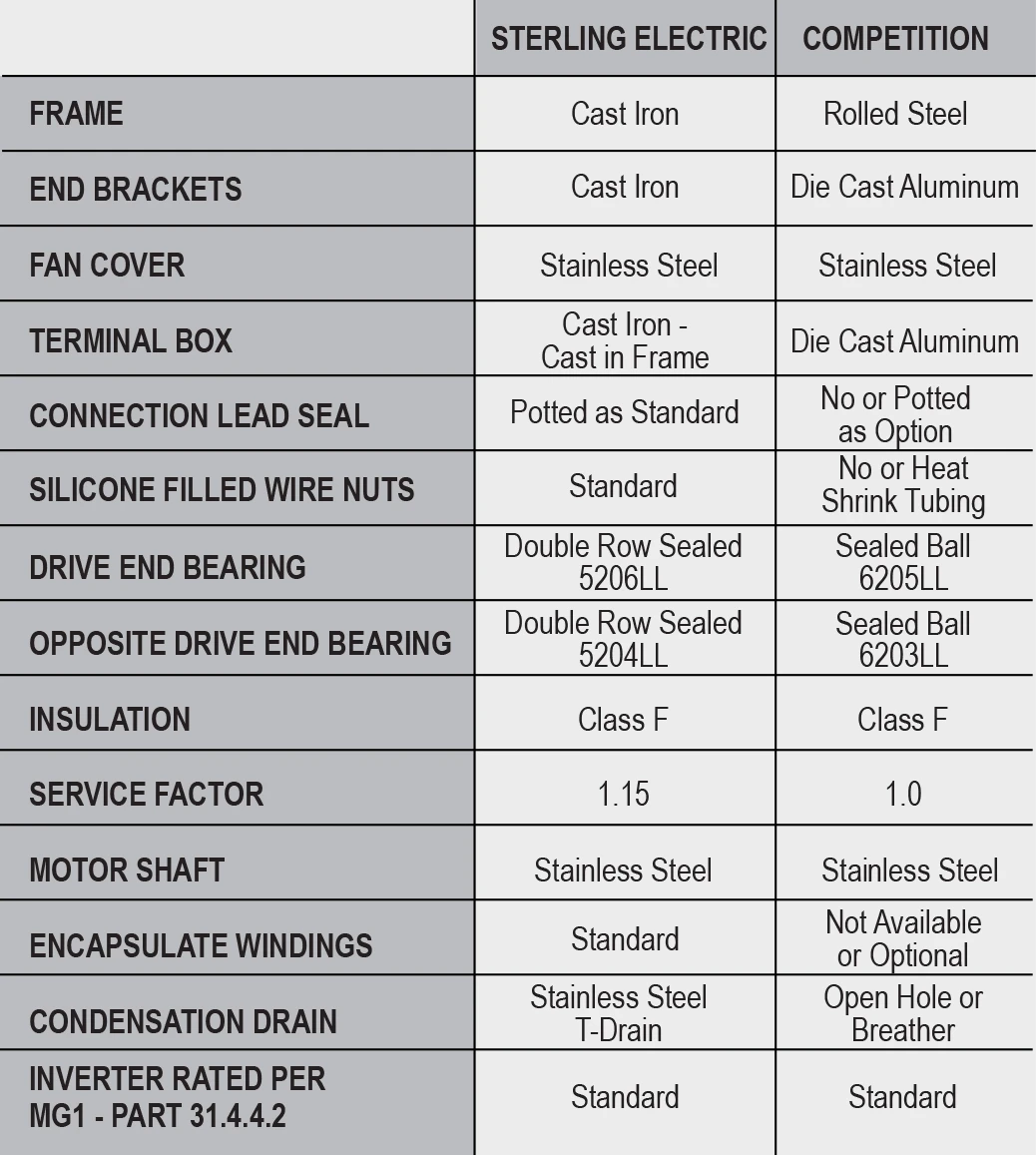

The following outstanding features set us apart.
All motors are supplied, as standard, with two- part epoxy white paint. Fan guard and terminal box cover are of stainless steel materials. Encapsulated motor windings and potted connection leads, as standard. Double row sealed bearings on drive end and opposite drive end for greater overhung loads, as standard.
Enclosure Premium Efficient
3HP, 3 Phase, 60Hz
208-230/460 Volt, 1800 Rpm
IP69-Rated

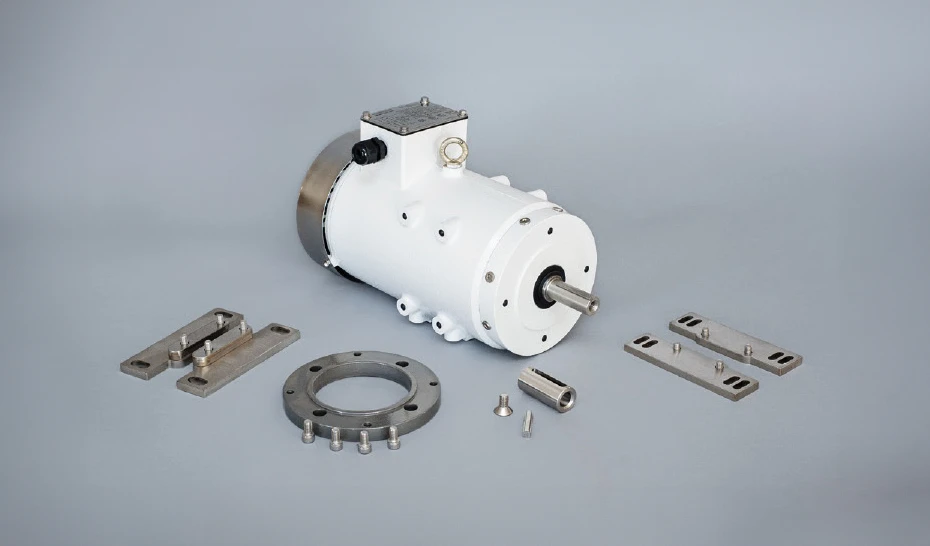

The flexibility of our Universal Picker Motor allows for ONE base-model motor, that can be carried in inventory, to make both NEMA and IEC mountings with the addition of two base kits or three output flange mounting kits and a metric shaft kit.
With this flexible design, the Sterling Universal Picker Motor is interchangeable with many competing brands, and provides greater durability with a cast iron heavy-duty frame. Our standard motor provides, as standard, a stainless steel fan guard and conduit box cover. All nameplate data is permanently etched into the conduit box cover for ease in making electrical connection or reference of motor performance characteristics.
Sterling’s Universal Picker Motor provides optimum motor insulation protection with encapsulated windings, as standard. All connection leads are potted with polymer to eliminate intrusion of water to internal components. Each motor is provided with silicone filled wire nuts to insure electrical connections are free from any water intrusion caused by the severe environment found in picker applications.
Double-sealed, double-row bearings on each end provide greater overhung load capability for use with the HTD pulley used in picker applications.
